IEC 62196 Portable Ev Charger 220V 7KW MAX 32A SAE J1772 GBT 20234

Name: IEC 62196 Portable Ev Charger 220V 7KW MAX 32A SAE J1772 GBT 20234
Brand: EVCOME
Price: 1 USD

Wholesale IEC 62196 Portable Ev Charger 220V 7KW MAX 32A SAE J1772 GBT 20234 from china suppliers

Brand Name : EVCOME

Model Number : EV-HY-32AC

Certification : CE UKVA ROHS

Place of Origin : SHANGHAI

MOQ : 2 pcs

Price : USD negotiation

Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram

Supply Ability : 20000 PIECE PER MONTH

Delivery Time : 8-10 work days

Packaging Details : 350(H) × 240(W) × 95(D)mm

product name : home use Portable Ev Charger

Working Voltage : 220V-250V

Rated power : 3.6KW 7KW 11KW

Rated frequency : 50/60HZ

Protection rank : IP65 waterproof

Fire retardant level : UL94V-0

Input power : 250 Max

Executive standard : IEC62196 / SAE J1772/ GBT 20234

Operating temperature : -30℃-50℃

Control box size : L210xW85xH48(mm)

Contact Now

EVCOME Portable Ev Charger 220V 3.6KW MAX 32A SAE J1772 GBT 20234 IEC 62196

Portable Ev Charger Description

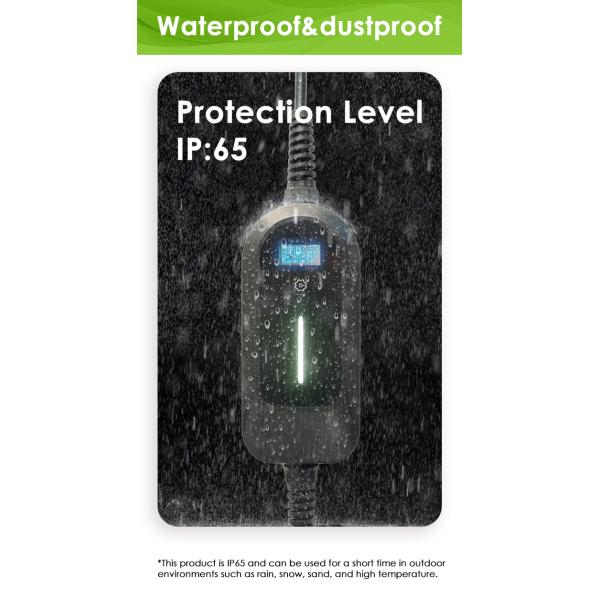

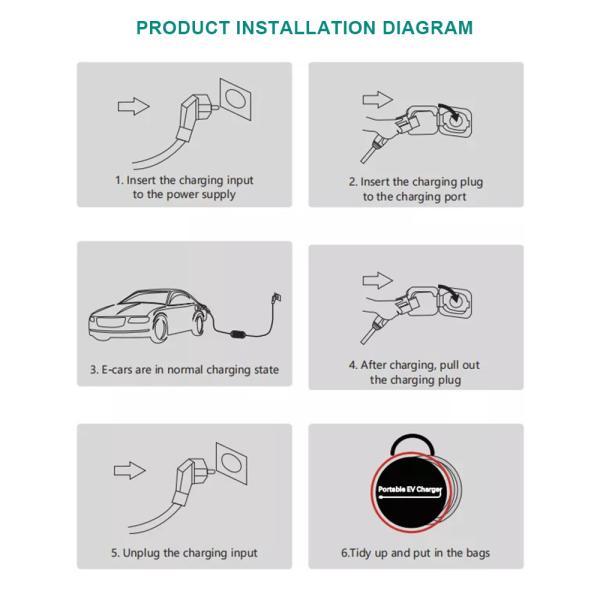

The Portable EV Charger is simple to use, all you need to do is plug it into the PLUG outlet and then plug the charging gun into the charging port device will start charging your EV's battery. The operating temperature of the product is -40°C - +65°C. The protection class of the charging box is IP65 and the protection class of the charging gun is IP55 (when plugged in). The outer jacket of the charging cable is made of TPU, which is resistant to corrosion, abrasion and low temperature. The cable remains soft and does not become hard when used in cold climates, making it inconvenient to use.

EV Charger is an electric vehicle charging device that is used to charge electric vehicles such as electric cars, electric buses, and electric bikes. The main features of EV Chargers are:

Compatibility - EV Chargers are compatible with most of the electric vehicles available in the market today. They have different charging ports and connectors to suit different types of vehicles.
Fast Charging - EV Chargers have the capability to charge electric vehicles at a much faster rate than residential outlets. This helps reduce charging time and increase the range of the EV.
Efficiency - EV Chargers are designed to deliver energy to the vehicle efficiently, minimizing energy loss and reducing the overall cost of charging.

Portable Ev Charger Details

Input & Output
Input voltage / Output voltage	220V	Output current	8A/10A/13A/16A/32A Ajutab
Max power	3.6kw/7kw / 11kw	Input frequency	50Hz
Standby power consumption	<3W	Charging interface type	TYPE 1(SAE J1722), TYPE 2 (IEC 61851),GBT(20234)
Protection
Over-voltage protection	Yes	grounding protection	Yes
under-voltage protection	Yes	over-temperature protection	Yes
overload protection	Yes	low-temperature protection	Yes
earth leakage protection	Yes	lightning protection	Yes
Working environment
Applicable scene	Indoor / Outdoor	Operating temperature	-30℃ ~ +50℃
Height above sea level	<2000m	Operating humidity	5% ~ 95%, non-condensation
Protection level	IP65	Cooling method	Natural cooling
MTBF	100,000 hours	Special protection	UV protection design
Structure Appearance		Certificate
Equipment dimension	2108548mm ( LWH )	CE	UKCA
Installation method	Portable Ev Charger	ROHS
Wiring method	Bottom enter&out
Equipment weight	3kg
Length	5m or customized

IEC 62196 Portable Ev Charger 220V 7KW MAX 32A SAE J1772 GBT 20234

Our Service

Customer Service

★ We provide very professional product consultation and introduction to fully match your needs

★ 24-hour customer service team, ready to provide you with consultation and service

★ All customers will get one-on-one service.

Customized Service

★We offer very flexible customization services like OEM/ODM

★OEM includes color, logo, outer packaging, cable length, etc

★ODM includes function setting, new product development, etc.

After Sales Service

★We offer a one-year quality guarantee period for our products

★We have a very professional team to solve all the problems encountered in the process of use, they will be at your service 24 hours

Drop Shipping

★We have our own warehouses overseas, making delivery more convenient and faster

IEC 62196 Portable Ev Charger 220V 7KW MAX 32A SAE J1772 GBT 20234 Images
