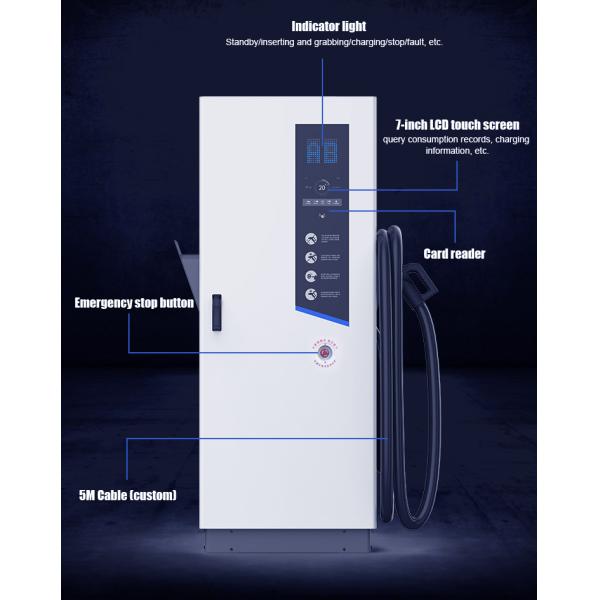

Mode3 EV Charger 120kw Electric Vehicle Fast Charging Pile CCS type 2/type 1 Charging Station120KW
The output adopts annular flexible power distribution. It can also be flexibly matched with different types of modules according to the needs of different application environments and different types of customers to meet the needs of various charging occasions.
| Item | DC Car Charging Station | | Module power | 37.5KW | | Output voltage | DC200-1000V | | Output current | 0-2400A | | Input voltage | AC380V士15% | | Frequency | 45-65Hz | | Steady flow accuracy | ≤±1% | | Current unbalance | ≤±5% | | Altitude | < 2000m | | Size | Host: 2100*1100* 1533/Terminal: 1602*170*343 | | Billing method | Customized | | Display function | Terminal: 7 inch touch screen | | Number of charging guns | 8 guns (can be increased or decreased according to demand) | | Cooling method | Smart air cooling | | Noise | ≤60dB | | Operating temperature | -25°C ~+SS°C | | Waterproof level | IP54 | | Weight | Host: 700KG (excluding power module) / Terminal: 50KG | |
IP54, Strong and Durable:
Support outdoor harsh environment,waterproof and dust-proof. Rugged shell which could resist the rolling and crash of the car.
Ingress Protection IP54,IK10
You can use the item outdoor and do not have to worry even in rainy days. The shell is made of ABS, Light
but robust, so it will note be easily damaged. You can add a lock at the bottom of the station to prevent lost.
The series DC fast charging station is a dual DC outlets(CHAdeMO and CCS) 120kwfast charger with an optional Yype-2 AC output up to 22kw that can be configured to meet different charging needs of both European and north American customers. It supports simultaneous charging and balancer reel for advanced cable management.With user-friendly interface display and control guidance function.
customers can complete the charging process easily.It is IP54 Rated which makes it suitable for outdoor&indoor public charging and commercial places charging application
Product Tags:
|
|
120kw Mode 3 EV Charging Pile Ocpp 1.6 Home Ccs Car Charger Station Type 2 Type 1 Images
|
